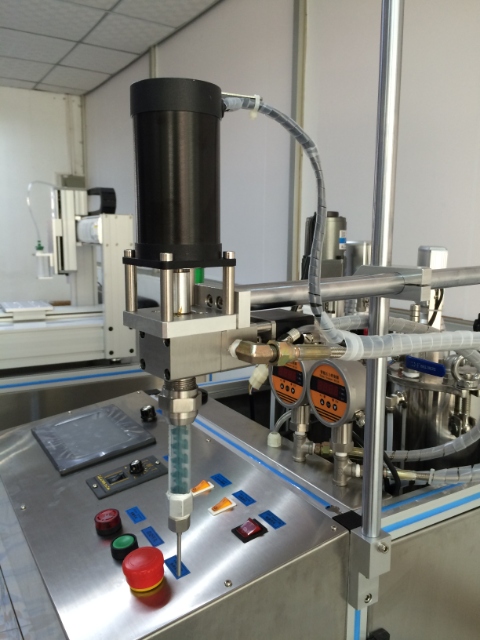

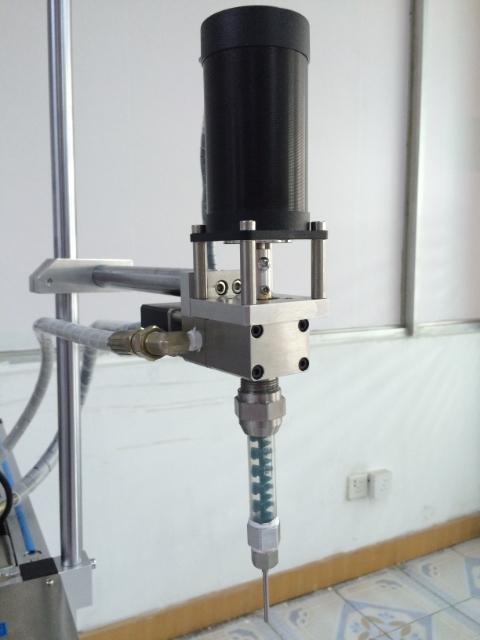

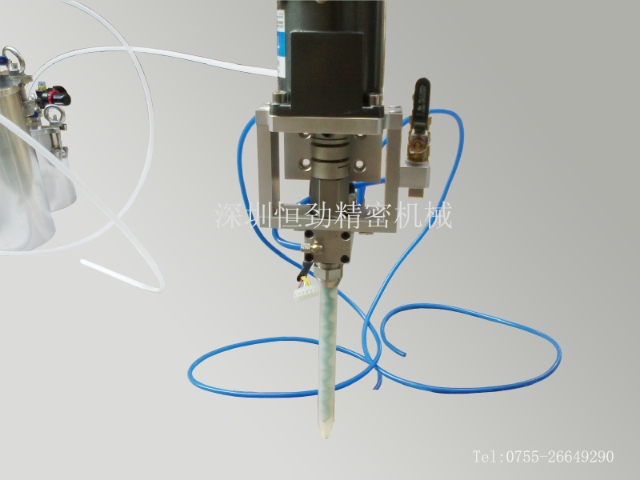

动态混胶阀HJ-7T

型式

Type:

动态混胶阀

使用气源

Operating Air Source:

4-7Kgf/cm

最小吐出量

Min.Shot Volume:

0.01ml

操作黏度

Operation Viscosities:

1-1.000.000cps

主体材质

Wet Body Material:

不锈钢

入料压力

Material Input Pressure:

<300 kg

入料口尺寸

Material Inlet Outlet Size:

1/8″npt(f)

操作速率

Operating Cycle:

<400/min

外形尺寸

Overall Dimensions(mm):

42*31*150 (mm)

安装尺寸

Mounting dimensions:

M6*50 (mm)

※回吸式设计，有效控制胶水滴漏，清洗方便，排量可调
