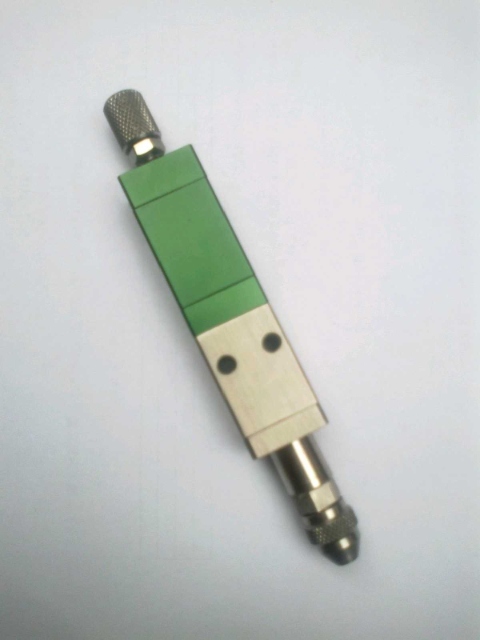

玻璃胶打胶阀HJ-6T

型式
Type:

玻璃胶打胶阀

使用气源
Operating Air Source:

4-7Kgf/cm

最小吐出量
Min.Shot Volume:

0.01ml

操作黏度
Operation Viscosities:

1-1.000.000cps

主体材质
Wet Body Material:

不锈钢

入料压力
Material Input Pressure:

<300 kg

入料口尺寸
Material Inlet Outlet Size:

1/4″npt(f)

操作速率
Operating Cycle:

<600/min

外形尺寸
Overall Dimensions(mm):

31*31*130 (mm)

安装尺寸
Mounting dimensions:

M4*13 (mm)

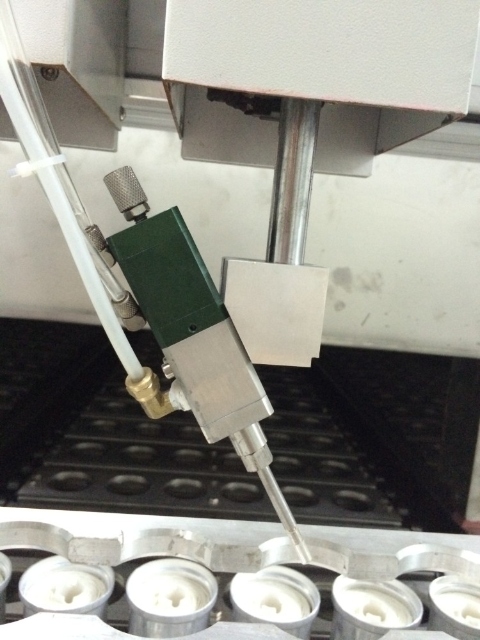

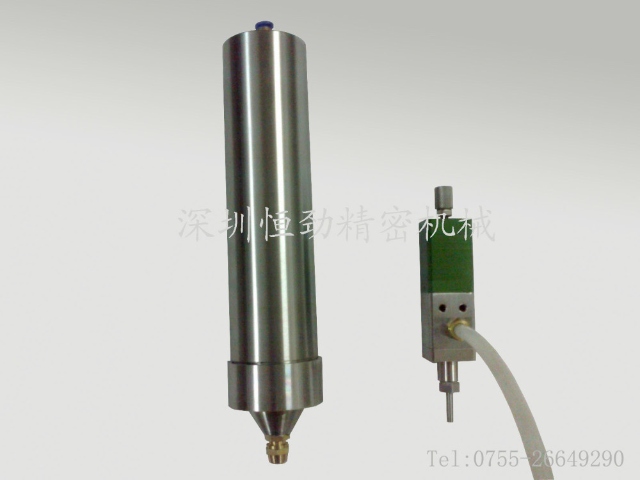

※可接各式针头,可任意与供料泵或储料压力桶连接使用，适用于各种流体
