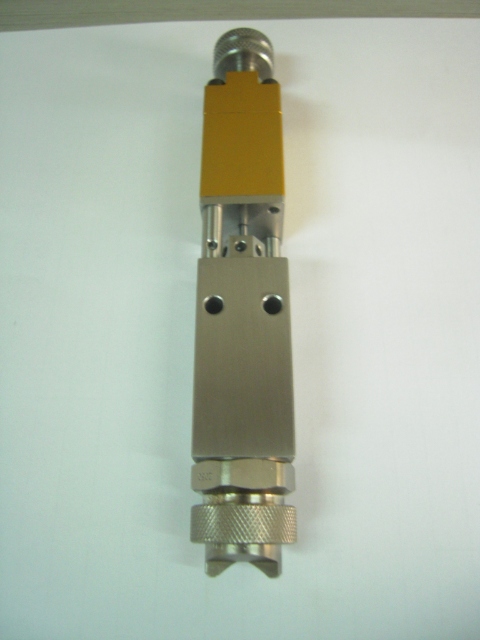

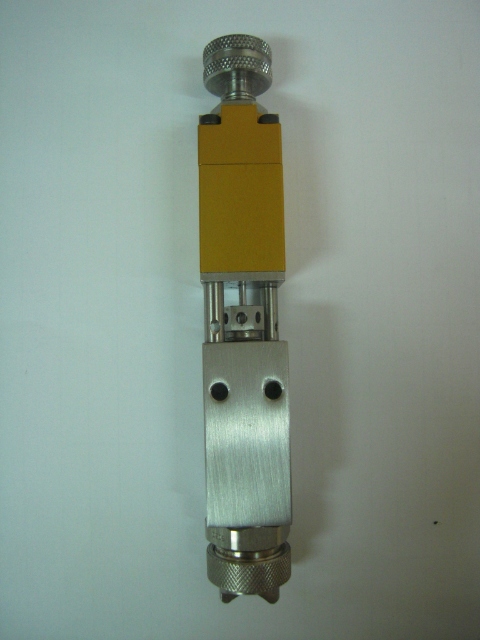

扇形三防漆喷雾化阀HJ-7001-10

型式
Type:

扇形三防漆喷雾阀

使用气源
Operating Air Source:

4-7Kgf/cm

最小吐出量
Min.Shot Volume:

0.01ml

操作黏度
Operation Viscosities:

1-1.000.000cps

主体材质
Wet Body Material:

不锈钢

入料压力
Material Input Pressure:

<300 kg

入料口尺寸
Material Inlet Outlet Size:

1/8″npt(f)

操作速率
Operating Cycle:

<400/min

外形尺寸
Overall Dimensions(mm):

21*21*140 (mm)

安装尺寸
Mounting dimensions:

M4*13 (mm)

※雾化压力短暂保持，确保喷嘴清理，防止堵塞，保证流体的均匀雾化

※适用于三防漆等中，低粘度流体大幅喷涂（15mm-80mm)（5000cps以下粘度适用）
